00495155 THERMOCOUPLE K

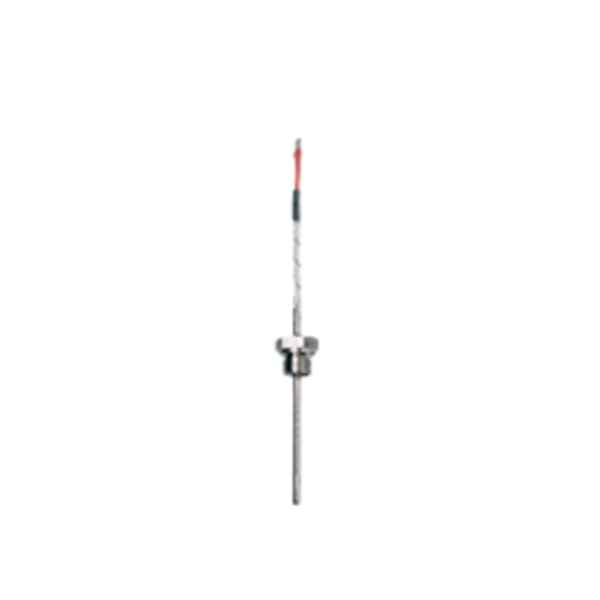

JUMO THERMOCOUPLE K 6X150 OE PN 00495155 CABLE 2,5 MT TTS ARMED ANTI-CREASE SPRING. APPLICATION AREAS CAN BE FOUND IN THE CONSTRUCTION OF HEATING SYSTEMS, FURNACES/KILNS, AND APPLIANCES.

SCREW-IN THERMOCOUPLES ARE THE PREFERRED CHOICE FOR MEASURING TEMPERATURE IN LIQUIDS AND GASSES. AN IMPORTANT FACTOR FOR SELECTING THIS INSTALLATION TYPE IS ITS ABILITY TO FORM RELIABLE SEALS FOR VACUUM AND OVERPRESSURE APPLICATIONS.
DEPENDING ON THE VERSION, THE COMPENSATING CABLES ARE SUITABLE FOR DRY OR HUMID ROOMS THAT HAVE A TEMPERATURE RANGE FROM -20 TO +350 C. THE COMPENSATING CABLE TRANSITION POINTS TO THE PROTECTION TUBE ARE STRAIN-RELIEVED AND CAN BE PROVIDED WITH KINK PROTECTORS IF REQUIRED.
PROTECTION TUBES MADE OF STAINLESS STEEL PROTECT THE MEASURING INSERT AGAINST CHEMICAL INFLUENCES AND MECHANICAL DAMAGE.

TECHNICAL SPECIFICATION
CONNECTION: AVAILABLE WITH CABLE ENDS AS: BARE WIRES, FERRULES, WITH RECEPTACLES OR MULTIPOLE CONNECTOR
COMPENSATING CABLE: SILICONE, AMBIENT TEMPERATURE -50 TO +180 C METAL BRAIDING, AMBIENT TEMPERATURE -20 TO +350 C , LENGHT 2500 MM
PROCESS CONNECTION THREAD, STAINLESS STEEL 1.4571
PROTECTION TUBE STAINLESS STEEL 1.4571, 6MM AND 8MM DIA.
MEASURING INSERT INSULATED ASSEMBLY:
1 X FE-CON L, DIN 43 710, CL. 2, OPERATING TEMPERATURE -200 TO +600 C
1 X NICR-NI K, EN 60 584, CL. 2, OPERATING TEMPERATURE -200 TO +600 C
2 X FE-CON L, DIN 43 710, CL. 2, OPERATING TEMPERATURE -200 TO +600 C
2 X NICR-NI K, EN 60 584, CL. 2, OPERATING TEMPERATURE -200 TO +600 C
ACCESSORIES POCKETS, DATA SHEET 90.9721

CROSS REFERENCE
ES: A010A108
JUMO: 901005
ESTIMATE AVAILABLE IN WORKING DAYS FROM ITALY TO ITALY: 15GG

THIS PRODUCT MAY VARY ON DELIVERY TIMES, AS FACTORIES DO NOT GUARANTEE PRODUCTION DUE TO LACK OF RAW MATERIALS
