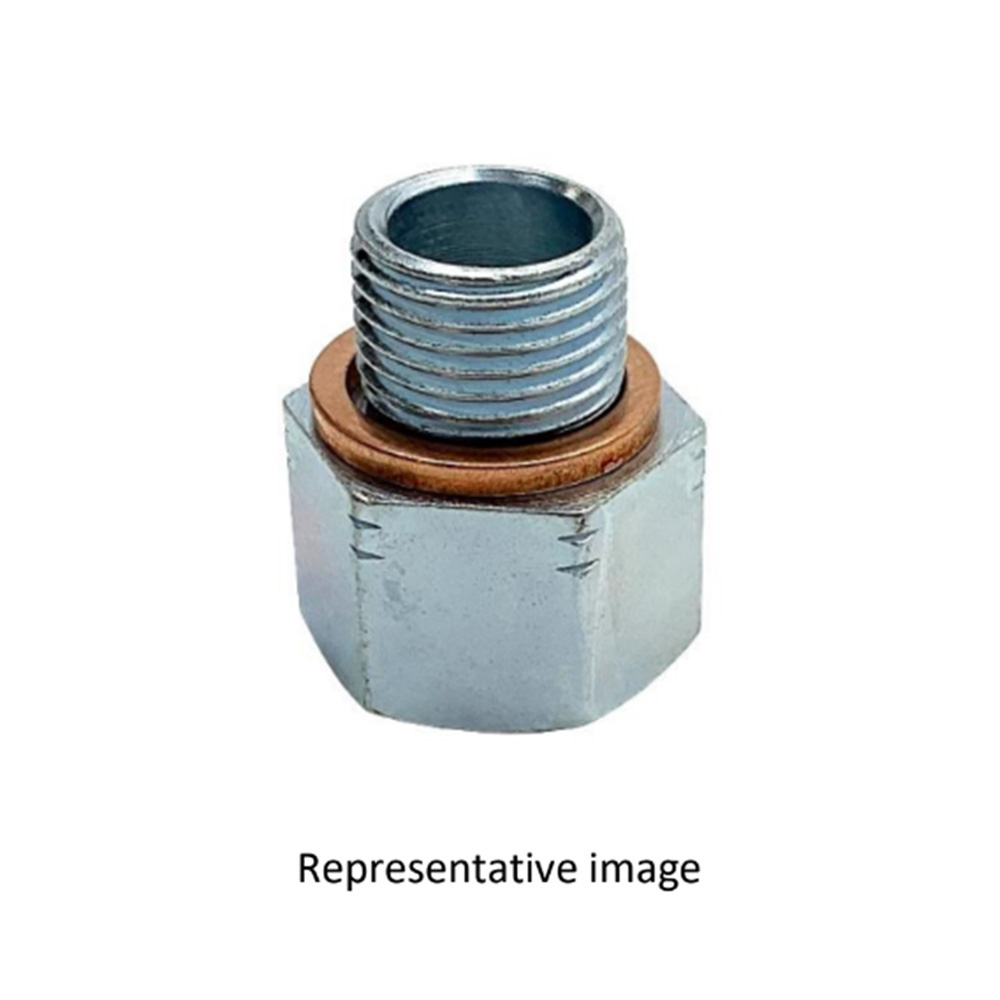

10002452 ADAPTER KIT 5/8 A BULB

MURPHY ADAPTER OE PN 10002452, ADAPTER KIT 5/8 A BULB FOR TEMPERATURE SENSOR SERIES 20BTG, 20T, 25T,A20T AND A25T.

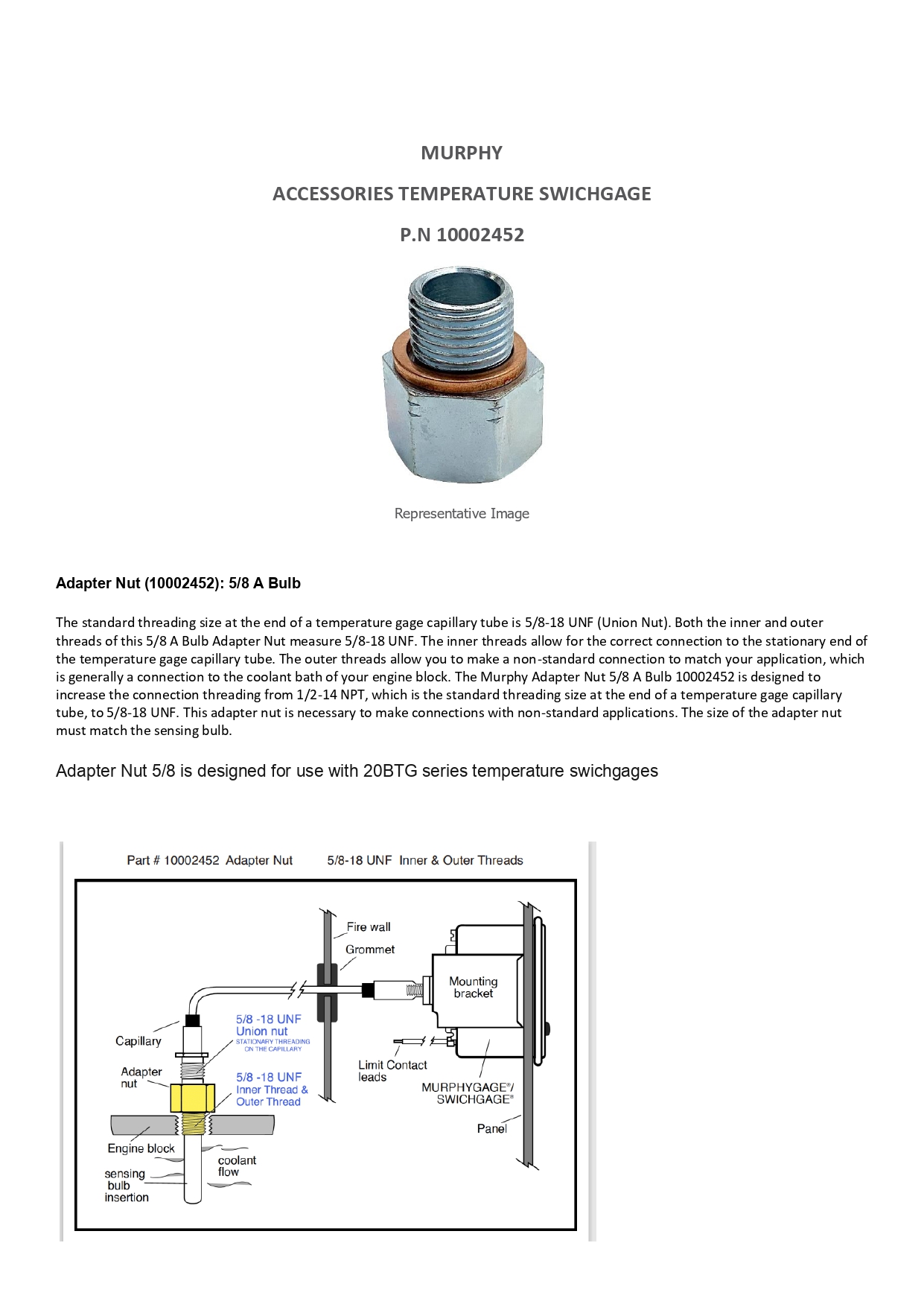

THE STANDARD THREADING SIZE AT THE END OF A TEMPERATURE GAGE CAPILLARY TUBE IS 5/8-18 UNF (UNION NUT). BOTH THE INNER AND OUTER THREADS OF THIS 5/8 A BULB ADAPTER NUT MEASURE 5/8-18 UNF. THE INNER THREADS ALLOW FOR THE CORRECT CONNECTION TO THE STATIONARY END OF THE TEMPERATURE GAGE CAPILLARY TUBE. THE OUTER THREADS ALLOW YOU TO MAKE A NON-STANDARD CONNECTION TO MATCH YOUR APPLICATION, WHICH IS GENERALLY A CONNECTION TO THE COOLANT BATH OF YOUR ENGINE BLOCK. THE MURPHY ADAPTER NUT 5/8 A BULB 10002452 IS DESIGNED TO INCREASE THE CONNECTION THREADING FROM 1/2-14 NPT, WHICH IS THE STANDARD THREADING SIZE AT THE END OF A TEMPERATURE GAGE CAPILLARY TUBE, TO 5/8-18 UNF. THIS ADAPTER NUT IS NECESSARY TO MAKE CONNECTIONS WITH NON-STANDARD APPLICATIONS. THE SIZE OF THE ADAPTER NUT MUST MATCH THE SENSING BULB.
ADAPTER NUT 5/8 IS DESIGNED FOR USE WITH 20BTG SERIES TEMPERATURE SWICHGAGES.
ESTIMATE AVAILABLE IN WORKING DAYS FROM ITALY TO ITALY: 28GG

THIS PRODUCT MAY VARY ON DELIVERY TIMES, AS FACTORIES DO NOT GUARANTEE PRODUCTION DUE TO LACK OF RAW MATERIALS
